Welcome to my page! Here, you can learn a little about me and view my personal and school related projects. My name is Kaleb Badgett and I am a sophomore currently attending Texas Tech University in pursuit of a degree in Computer Engineering. I am from Odessa, Texas and have lived there for the last twelve years. I have interests in drumming, computers, hardware systems, novelty board games, and sharing my faith. In my free time, I enjoy spending time with family and friends, and playing tabletop board games.

Through my time at Tech, I have learned many things such as, how to use Verilog, C++, Python (basic understanding), building breadboard circuits using combinational and sequential logic, and most important of all, how to learn! As I learn more and undergo more projects, I will update this page with the results.

My time at Tech has been very educational, and I am very excited to put what I learn here to use in the workplace. Feel free to check out my projects below!

ECE Award

ECE Award

In my freshman year at Texas Tech, I was awarded the ECE Freshman of the Year Award, as shown in the photo. To read more about this, check out the spring 2024 ECE Newsletter.

The Crown Jewels

CPU Project

The project I am most proud of is my final project from my Modern Digital Systems class with Professor Derek Johnston. The goal of this project was to create a fully functional CPU using breadboards and different digital logic devices. My group and I faced many challenges, such as malfunctioning breadboards and faulty wiring, while completing this project, but the end result was exactly what we wanted. We were able to build a fully functional CPU that is comprised of an acting ROM in the form of an Arduino, registers, multiplexers, hex inverters, programmable logic devices, and an AND gate. Our CPU functions just as a normal CPU would, only it is on a smaller scale. It is a 4-bit CPU that has 2 registers and can preform 4 opperations: addition, subtraction, exclusive OR, and move.

Below, you will find pictures displaying our CPU and some of our work regarding our machine code as well as some videos of the CPU in action! In addition to this, if you would like to view the project report my team put together as well as some examples of our arduino code, you can download the PDF here Project Report.

First, Let's Look as the CPU Diagram

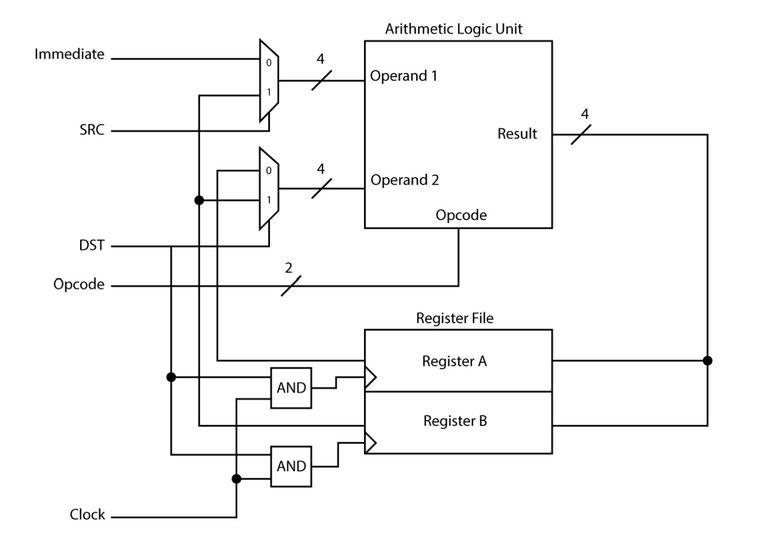

This hardware diagram shows the different components of the CPU and how they all interact with each other.

Picture of the CPU Diagram


Second, Take a Look at the CPU

The CPU is comprised of two multiplexers and two hex inverters on the top two boards. The next chips on the board are the two programmable logic devices, or PLDs. Directly below those are the two registers. To their left is an AND gate and one final hex inverter.

Picture of the CPU


Next, Let's Look at Some of Our Machine Code Calculations

Below, you will see three photos of machine code and binary multiplication calculations. We used this data to complete our multiplication algorithm that was then put into the arduino.

Picture of Whiteboard 1
Picture of Whiteboard 2
Picure of Machine Code


Now for the Demonstration

Below, you will find a video that observes the CPU as it runs through a multiplication algorithm.


Next, Take a Look at the XOR Function in Action

An exclusive OR, or XOR, function is one in which if the inputs are the same, the output is zero, and if the inputs are different, the output is one. View this for yourself in the video as the CPU preforms this function!


This Final Video Was For Fun More Than Anything Else

In this video, we changed our clock cycle from 1 second to 1 millisecond. This causes our CPU to run almost too fast to see. Even in the slomotion capture toward the end of the video, the calculation occurs extremely quickly.

This was a very fun and educational project that I'm glad I was able to undertake. If you would like to access the full report, you can do so here.


My First Video Game!

Next on my list of projects is my very own "build your own adventure" game called Defending Nallapas. In this Science Fiction based game, you will make a series of choices that will have an affect on your future.

In this prompt based game, you will be presented with many choices, and every coice you make will have an effect moving forward. It may be something as simple as who you talk to, how you react to a situation, or even the words you choose to use, but it will have an effect all the same. Will you be the hero who saves the galaxy? Or will you be the villain bent on domination? It is all up to you in Defending Nallapas! Are you ready to venture where no man has gone before?

Defending Nallapas in Action

Once you download the required files from my GitHub page, you'll want to find the setup.exe file and open it.

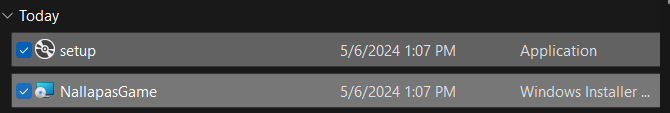

Defending Nallapas files in downloads.

Once setup.exe is open, you will be presented with a setup wizard. Just follow the instructions to download the game!

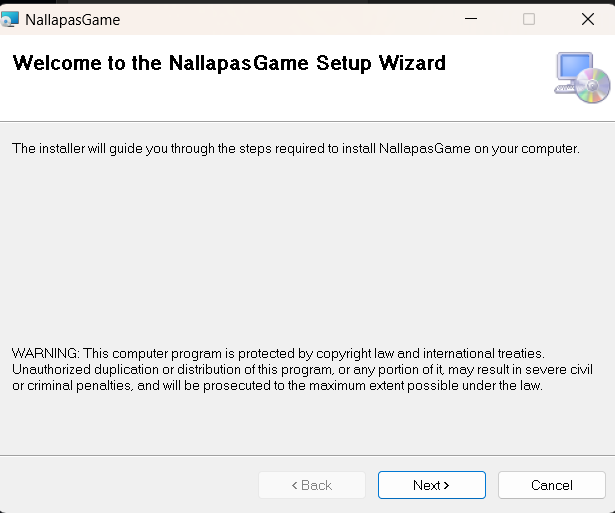

Setup Wizard.

*Make sure to save the file in a location where you can find it so that you can locate the application file easily! You may want to save the application file to your desktop for easier access.

Once the game is launched, you'll be met with the following screen.

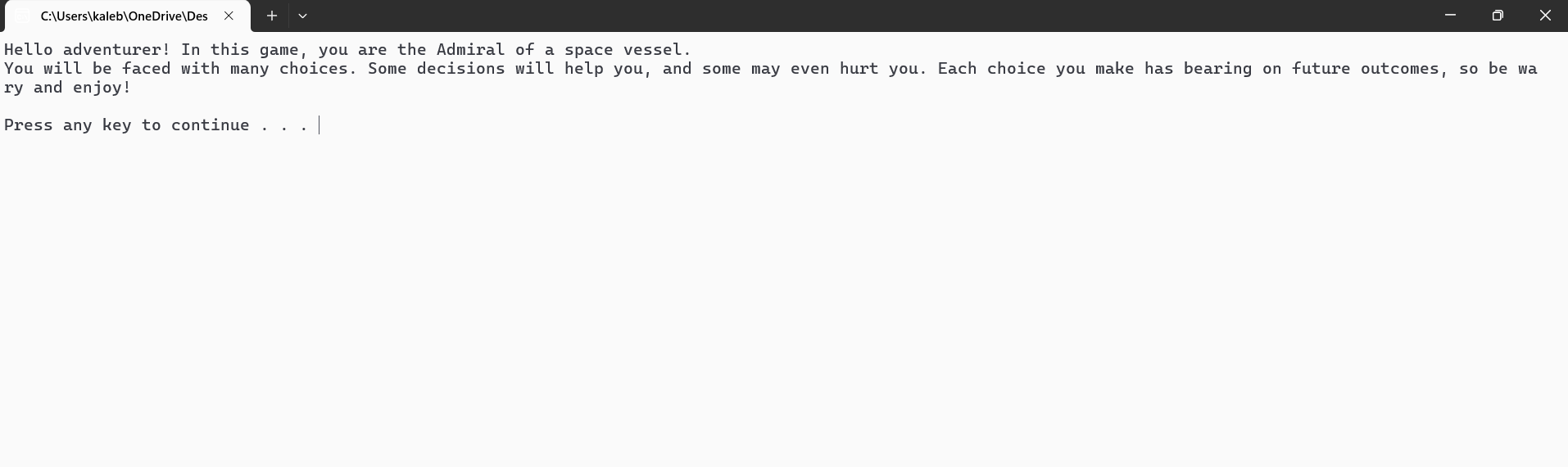

Game greeting.

From here you can start the game!

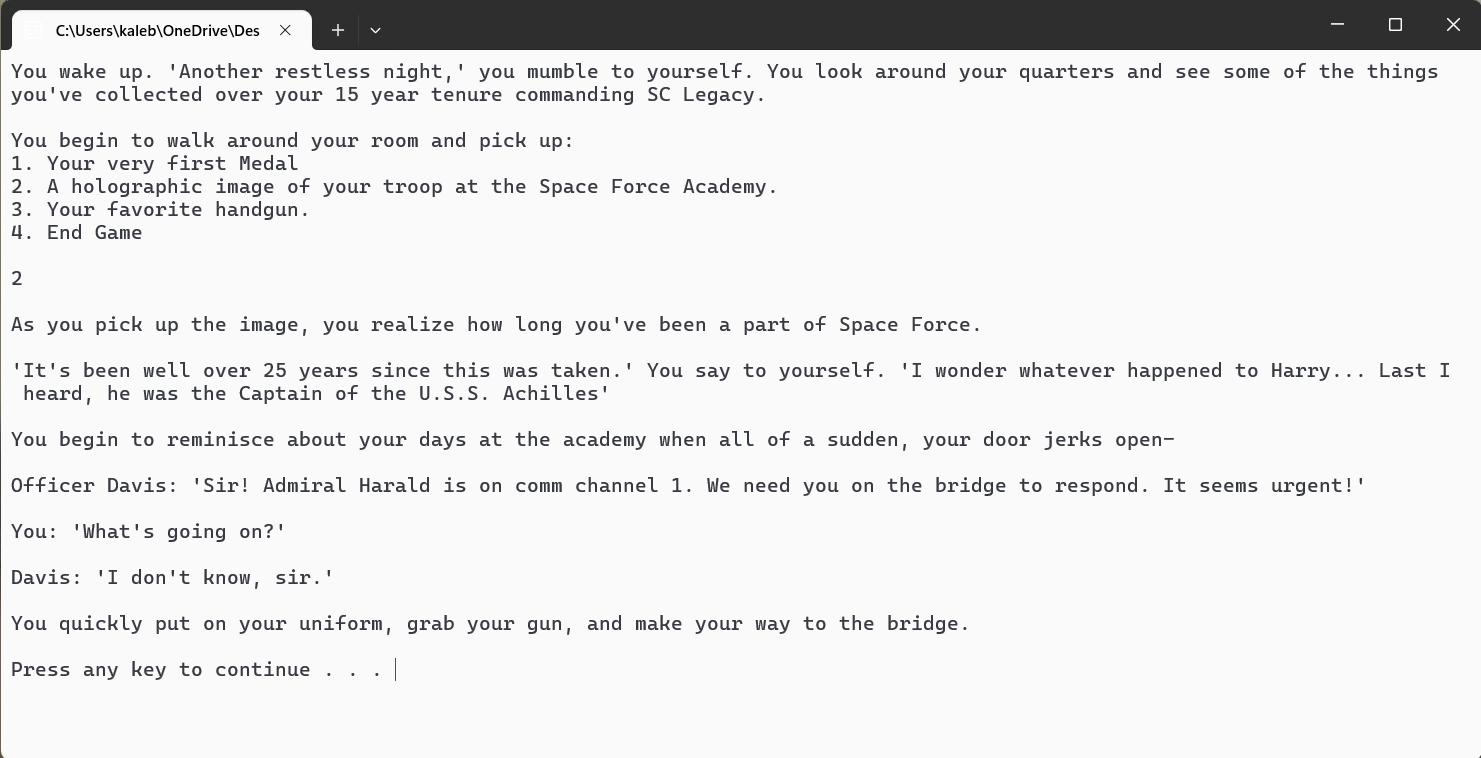

First choice in the game.

This game was built using C++. With 970 lines of code and 15 seperate endings, every choice you make carries weight!

If you are interested in my game, follow the link here to access my GitHub and download it for yourself! Make sure to read the README file listed on the GitHub page as it will give you download instructions.

If you have any feedback for improvements, feel free to email me at kabadget@ttu.edu.

Hardware Projects

Arduino related hardware projects

Traffic Light Controller

In this project, I designed a working traffic light controller that was timed using an arduino. The project report can be found here.


7 Segment Display Binary Counter

In this project, I had to design a binary counter that went from 0-9 and displayed the output on a 7 segment display. The project report can be found here.


Voltage Measurement Device Using LEDs

In this project, I had to create a device that could measure the voltage output of a potentiometer from 0-100%. The project report can be found here.


Voltage Measurement Device Using a Servo Motor

The goal of this project was to create a device that could measure the voltage output of a potentiometer from 0-5 volts and display it using a servo motor. The project report can be found here.


Other Hardware Projects

While I do not have pictures or videos of all them, I have also built these:

  1. A traffic light controller using sequential logic made with D-Flip Flops.

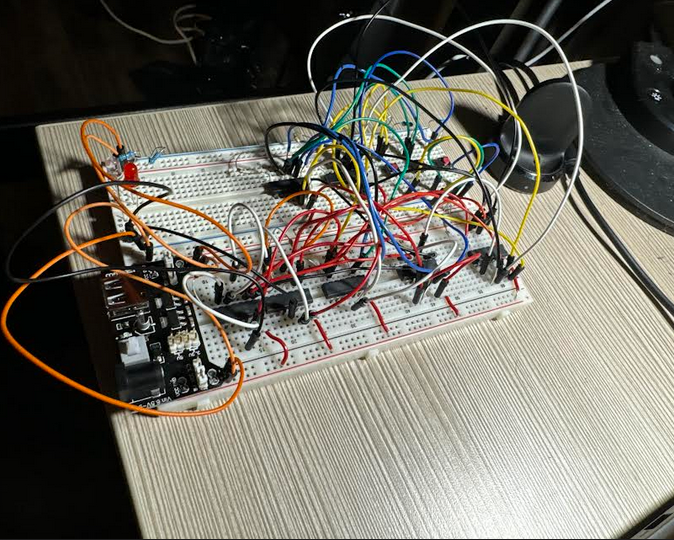

  2. An adder using AND, OR, and NOT gates. Adder made with logic gates.

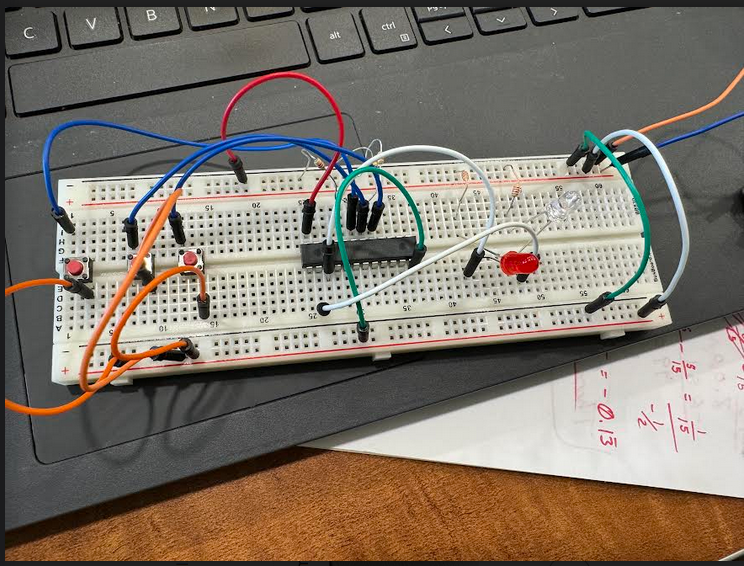

  3. An adder using a programmable logic device (PLD). Adder made with PLD.

C++ Programming Projects

  1. In my first programming project, I created a model of a simple RC circuit. It takes in user inputs for time and calculates current and voltage based off that. You can find the project report with code included here.

  2. The second project was to create a program that could solve the quadratic formula. It takes user inputs for a, b, and c and a series of If Else statements that control the output depending on how the inputs influence the equation. You can find the project report with code included here.

  3. My third programming project was to create a program that used For Loops to complete Gottfried Wilhelm von Leibniz's formula for . You can find the project report with code included here.

  4. The fourth programming project was to use Loops and Switches to preform different calculations on complex numbers. You can find the project report with code included here.

  5. My fifth project was to create different User Defined Functions that would preform different actions on a 1-D array. Some of these actions include finding the largest and smallest values, finding the mean, finding the median, and finding the mode. You can find the project report with code included here.

  6. Programming Project 6 was to create a program that could convert numbers from hexadecimal to decimal and from decimal to hexadecimal. In this project, I had to create Loops and such that could convert the string value of the hex numbers to usable integers and compare ASCII values to complete the conversion process. You can find the project report with code included here.

  7. In the seventh programming project, I had to create two .txt files. One would contain a sorted list of randomly generated numbers and the other contained a histogram of the results. You can find the project report with code and .txt outputs included here.

  8. The eighth project was to create a series of For Loops to complete a Gaussian Elimination based on coefficient values given by the user. You can find the project report with code included here.

  9. Programming Project nine was to create a program that could encode and decode different messages based on ASCII values and output the new messages in .txt values. This was completed by using Switch Case functions and for Loops. You can find the project report with code included here.

  10. The tenth and final programming project was to use Classes, Overloaded Operators, and Object Oriented Programming to complete different operations on complex numbers. You can find the project report with code included here.

Bonus Project!

One project that has yet to be mentioned is the very website you are reading from! To build this website, I used online resources, and the knowledge of a couple of friends to teach myself how to use HTML and CSS. Through this, I was able to style this website in order to make it responsive. This is what allows the website to shift and change depending on the screen size. I made it this way so that the website would be viewable on computers and phones. To make it responsive, I split the website into a twelve section grid. With each section controlling a different sections of the webpage, it changes with the size of the screen. This is only one of the many styling choices I am using. If you would like to see the HTML and CSS code used for this website, you can view it on my GitHub here.
